28 Inch Bar Type LCD Display 1920*360 LVDS 1000nits For Commecial Signage

Brand Name : ROGIN

Model Number : LCMA-RX0280TA03-C100 V1

Place of Origin : Shenzhen

MOQ : 5

Price : Price is negotiable.

Payment Terms : T/T, L/C

Supply Ability : Spot adequacy

Delivery Time : 6-8 weeks

Packaging Details : Cartons or wooden cases

Panel Size : 28"

Resolution : 1920*360

Brightness : 1000 (Typ.)

Operating Temp. : 0~50℃

Active Area : 698.4*130.9mm

Outline Dimension : 732*165*17.3mm

Name : Bar Type LCD Display

Contact Now

28 inch Bar Type LCD Display 1920*360 LVDS 1000nits

Product Advantage ►

1. 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
2. Advanced cutting technology to ensure the yield and precision.
3. High reliability with same features as original panel.
4. High Anti-vibration.
5. Brightness can be customized (500-2500nit).
6. Long life time 50K hours(Typ), up to 80K hours.

Product Application ►

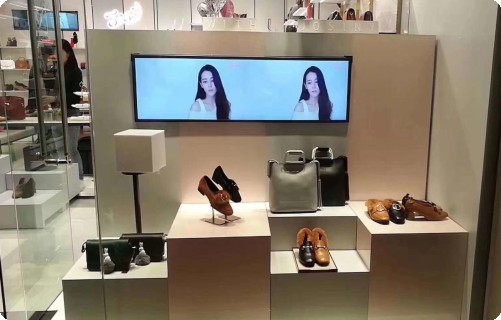

1. Commecial signage : Advertising and Price Shelves.

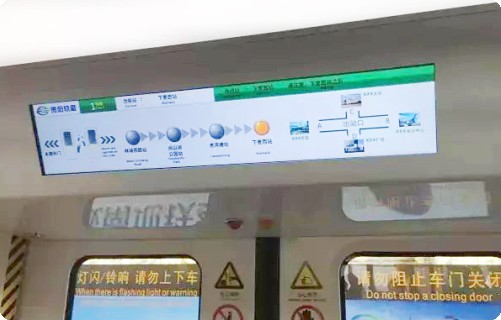

2. Public transportation: Bill board for Bus/Metro and light rail.
3. Guidance board, Lift advertising board.

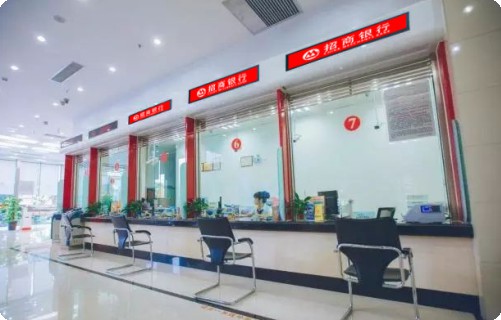

4. Financial services. Bank call notice board.
5. Name card.
6. Advertising board on taxi.

28 Inch Bar Type LCD Display 1920*360 LVDS 1000nits For Commecial Signage 28 Inch Bar Type LCD Display 1920*360 LVDS 1000nits For Commecial Signage 28 Inch Bar Type LCD Display 1920*360 LVDS 1000nits For Commecial Signage 28 Inch Bar Type LCD Display 1920*360 LVDS 1000nits For Commecial Signage

Specifications ►

LCMA-RX0280TA03-C100 V1

  Brand   Rogin
  Series   Bar Type LCD Display
  Panel Size
   28 inch
  Model
   LCMA-RX0280TA03-C100 V1
  Brightness
   1000
  Power Consumption
  21W
  Resolution
  1920*360
  Active Area
   698.4*130.9mm
  Overall Size
   732*165*17.3mm
  Viewing Angle
   /
  Interface Definition
   LVDS (2 ch, 8-bit)
  Backlight Type   WLED
  Contrast Ratio
   4000:1
  Aspect Ratio
   16:3
  Touch Panel   Without
  Operating Temperature
   0~50 ℃



► Product catalog of bar type LCD display.pdf
